The Machine and Shopfloor dashboards now rely on a new navigation: a dedicated modal to choose your period, your site's production day as the time reference, the displayed period and time zone next to the page title, and a simplified selection of your machines and manufacturing orders (MO).
This change builds on the new sites and equipment organization. It lets you think in production days rather than calendar days, and prepares the arrival of features related to calendars and shifts.
Where to find it
The new navigation appears on every page:

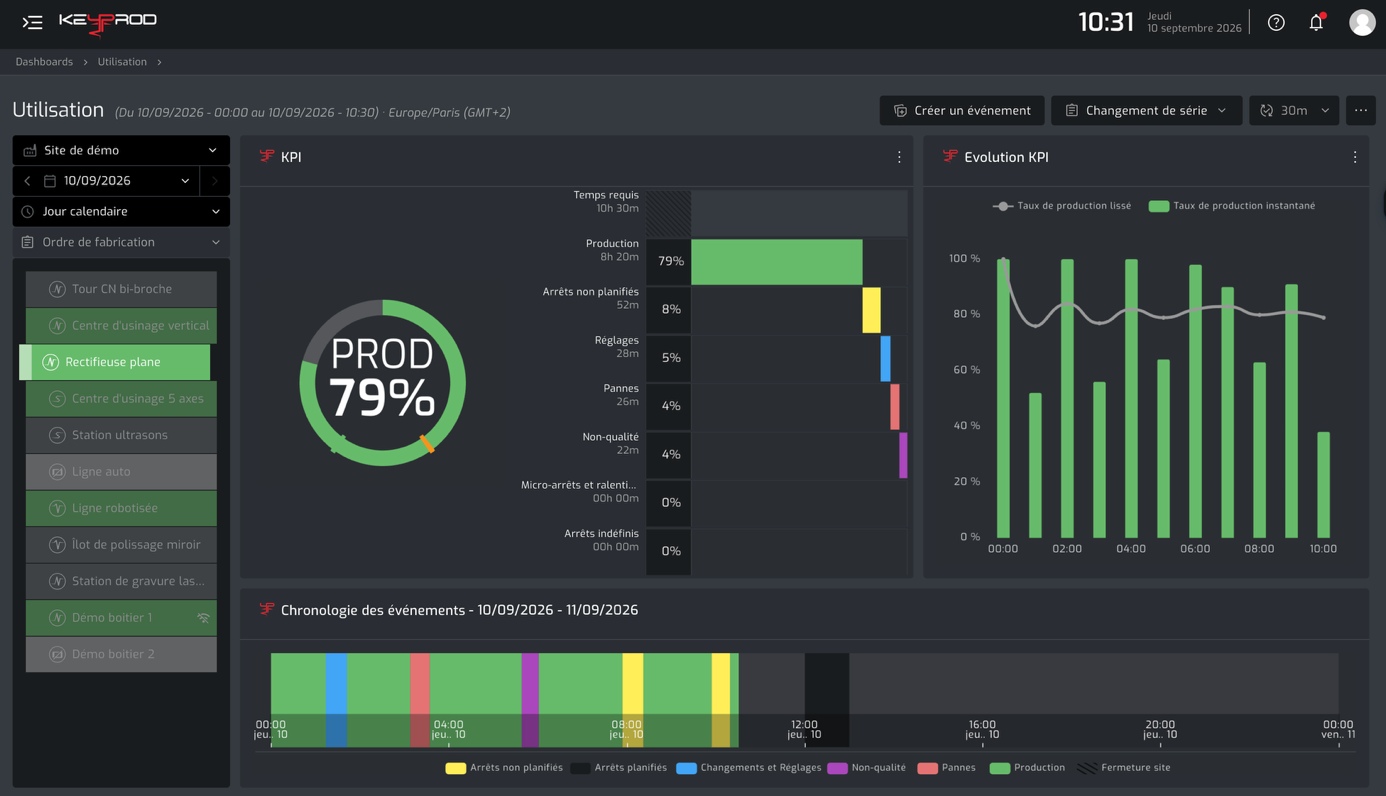

- Machine dashboards, with a vertical navigation on the left of the screen: Utilization, Categorization, Production, Losses, Monitoring, Cycles, Weekly timeline, KPI Overview
- Shopfloor dashboards, with a horizontal navigation bar under the title: Global KPIs, Status, Global utilization, Pareto of losses, Downtime trend, Global losses, Performance, Performance indicators
- Tables pages: Abnormal vibrations table, Downtime table, Supervision page
Good to know: its display depends on activating the new equipment organization on your account.
The period and time zone shown in the title
Next to each page title, you now read the exact period taken into account by the modules and the reference time zone, for example: Utilization (From 10/09/2026 - 00:00 to 10/09/2026 - 10:33) · Europe/Paris (GMT+2).
Good to know: for a period still in progress (today, this week, this month), the displayed end bound corresponds to the current time and moves forward during the day.
Elements of the new navigation
Note: on Shopfloor dashboards and the Weekly timeline, these elements are laid out horizontally under the title. The Weekly timeline also displays a machine banner that you scroll through with the arrows.
| Element | Description |
|---|---|
| Site and machine selector | At the top of the navigation, select the production site, area or workcenter whose data you want to display. A "Search" field makes selection in the tree easier. |
| Date row | Displays the selected period: a date in Day mode, an interval such as "07/09/2026 - 13/09/2026" in Week mode. The chevrons move forward or back one step (day, week, month or year depending on the active type). Clicking the date opens the period selection modal. |
| Shifts | Displays the time range taken into account for the day: "Calendar day" by default, or a specific shift. Editable only when the selected period type is "Day": in the other modes, the selector is grayed out. |
| Manufacturing order | Displays the selected MO in the "MO code / operation number" format (for example "55162 / 10"), or "Manufacturing order" when no MO is selected. On dashboards that do not handle MOs, a tooltip tells you so. |
| Machine list | Dropdown list of the machines of the selected workcenter, colored according to their status. The displayed machine is highlighted and the tooltip specifies the device type and the status (for example "Keynetic / Running"). An unavailable machine appears grayed out and cannot be selected. |
Choose your equipment
The selector opens the tree of your organization: sites, areas, then workcenters. Check the entity you want, then click "Apply".
On a Machine dashboard, you select a single workcenter. The machine list updates accordingly.
On a Shopfloor dashboard, you can check several entities, or select all in one click. The selector then shows a condensed label, for example "Automatic line +3 others".

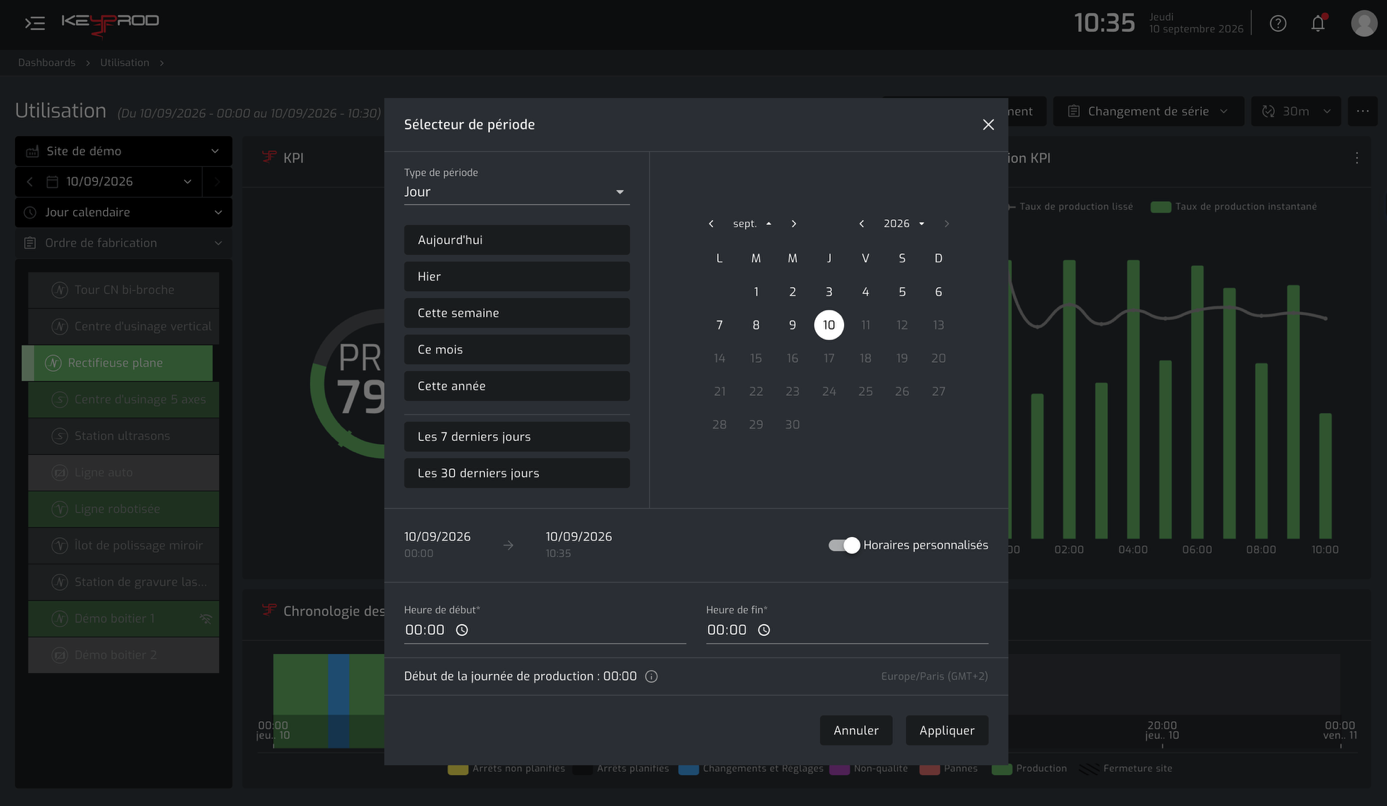

The "Period selector" modal
Click the date or the calendar icon on the date row to open the modal.
Period types
The calendar offers a dropdown for the month and for the year, as well as arrows to move to the previous or next month.
| Type | Behavior |
|---|---|
| Day | A single date selectable on a calendar |
| Week | Clicking a date highlights the whole week |
| Month | Choose the year with the arrows, then a grid of the 12 months |
| Year | Choose the year from a list |
| Custom | Two dates of your choice: the first click sets the start, the second the end |
Shortcuts
- Today / Yesterday
- This week
- This month
- This year
- Last 7 days / Last 30 days
Good to know: each shortcut automatically applies the matching period type, you have nothing else to select.
Summary and custom hours
Below the calendar, the modal summarizes the resulting period with its start and end dates and times. The "Custom hours" toggle reveals two fields, "Start time" and "End time". Whatever the chosen period type, they replace your site's usual hours: the start time applies to the first day of the range, the end time to the last day.
Reference information
The bottom of the modal recalls the applied time setting and the time zone (for example "Europe/Paris (GMT+2)"):
- "Start of the production day: [time]" on a Machine dashboard. The information icon details the reference day, the start time and the site's time zone.
- "Reference site: [site name] (GMT+X)" on a Shopfloor dashboard that gathers several sites (see below).
Actions
- Cancel: closes the modal without applying any change
- Apply: confirms the displayed period and refreshes the dashboard
The production day replaces the calendar day
On Machine dashboards, the bounds of each period now rely on your site's production day (start time, first day of the week) rather than on a fixed calendar day from 00:00 to 24:00. If your site's day start time is set to 06:00, a "Today" selection covers the 06:00 to 06:00 range the next day. If your site has not defined a start time, the day stays aligned on 00:00.
Attention: on Shopfloor dashboards that gather several sites, the displayed period relies on your account's reference site (identifiable by the "Default" badge on the corresponding site card), and not on the site currently selected on screen. The modal and the date row tooltip then show "Reference site: [site name] (GMT+X)".
Choose a time range within the day (shifts)
In Day mode, the Shifts selector of the navigation bar lets you restrict the analysis to a part of the day. Depending on your site's configuration, it offers:
- "Calendar day (00:00 - 23:59)": the full day, the default value
- Your site's named time ranges, for example "Morning (06:00 - 13:00)" or "Afternoon (13:00 - 21:00)"
- "Machine hours": the opening times configured for the machine
Good to know: if your site uses production calendars with shifts, the shifts of the displayed day are the ones offered to you. Changing the time range immediately updates all dashboard modules.
Manufacturing order selection
On dashboards that allow it, such as the Production dashboard, the MO row of the navigation bar lists the MOs found over the selected period, in the "MO code / operation number" format. Selecting an MO filters the dashboard to its duration.
