If you are using KEYVIBE with software version 3.2.3 or higher, you have the option to configure a static IP address for the WiFi card. This feature is especially useful for businesses that want to maintain precise control over their network connections.

Steps to Configure a Static IP

• Connect the Network Cable: To configure the static IP, you need to connect a network cable between your computer and the KeyVibe box. This physical connection is essential to access the settings of the WiFi card.

• Access the Settings: Once the network cable is connected, access the KeyVibe management interface via a web browser at the address: 10.10.10.1.

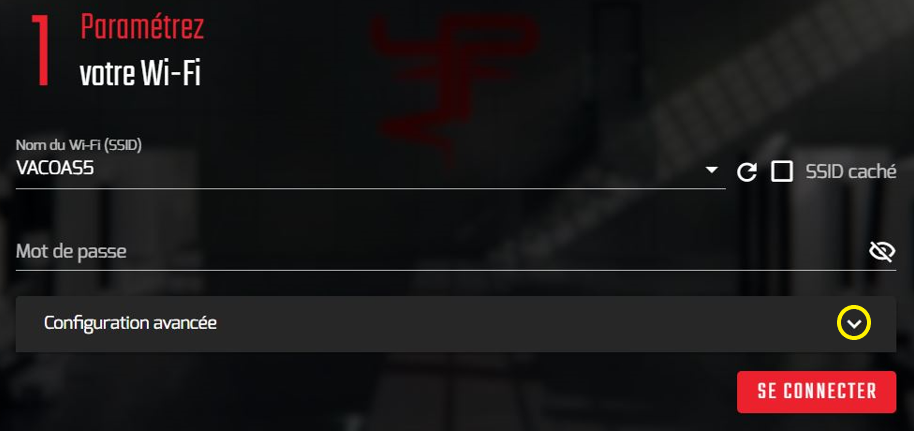

• If the box has never been configured, you will arrive at the configuration wizard at step 1.

• Enter the SSID (WiFi network name) and the associated password.

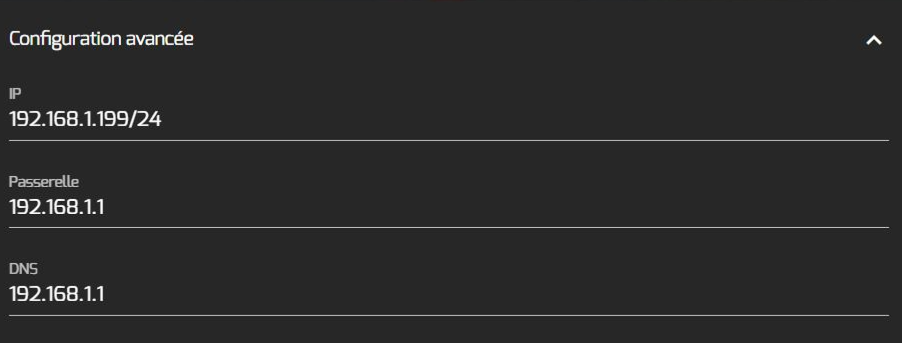

• To the right of "Advanced Configuration," click to expand the hidden options, then fill in the three required fields:

• IP: The IP address should be in decimal format with four numbers separated by periods. Example: 192.168.1.199 followed by the network mask in decimal format (CIDR notation).

  CIDR Notation	Subnet Mask	Number of Host Addresses
  /24	255.255.255.0	Approximately 254
  /16	255.255.0.0	Approximately 65,534
  /8	255.0.0.0	Approximately 16,777,214

• Validation and Saving: It is important to fill in all the fields, such as the SSID, password, and the three advanced configuration parameters, then click to save.

Advantages of Static IP

• Stability: A static IP ensures that your KeyVibe retains the same IP address, making it easier to manage and monitor.
• Security: By using a static IP, you can restrict access to your KeyVibe to only authorized IP addresses.
• Compatibility with Other Services: Some services and applications require a static IP to function correctly. You will be ready to use them without any issues.
